12J Thermistor Sensor Temperature Sensor
12J Thermistor Sensor Temperature Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Refrigeration
Brand:
Therm-O-Disc
12J Thermistor Sensor offers excellent reliability in a compact, rugged, cost-effective design. The 12J is also a proven performer for moisture protection and freeze-thaw cycling. Lead wires can be set to any length and color to match your requirements. The plastic shell can be made from PP, PBT, PPS, or most plastics that you need for your application. The internal thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 12J is used in a wide range of applications including air conditioners, refrigeration systems, heat pumps, and industrial processing systems.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Humid, Refrigeration Measures Surface Temperature
- -40°C to 130°C (-40°F to 266°F)
- 11+
- Ambient temperature sensing
- Custom body lengths, diameters and application-specific shapes are available
- Excellent moisture and freeze-thaw resistance
- Lead wire length and color to customer specification
- Lead wires can be terminated with customer-specified terminals or connectors
74J / 75J Thermistor Sensor Temperature Sensor
74J / 75J Thermistor Sensor Temperature Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Appliance
Brand:
Therm-O-Disc
74J/75J series targets dishwasher and clothes washer and dryer appliances.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Humid
- -40°C to 130°C (-40°F to 266°F)
- 11+
- Metal shell, connector based design
11J Temperature Sensor
11J Temperature Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Refrigeration
Brand:
Therm-O-Disc
11J Thermistor Sensor offers excellent reliability for various applications. The metal shell can be made from stainless steel, nickel-plated copper or other customer-specified materials. The internal thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 11J is used in many applications including boiler systems, heat pumps, floor heating and multiple appliances such as clothes washers & dryers, coffeemakers and dishwashers.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Wet or Dry
- -60°C to 200°C (-76°F to 392°F)
- 11+
- Bodies in nickel-plated copper, stainless steel or others available
- Custom body lengths, diameters and application-specific mountings are available
- Excellent moisture resistance
- Lead wire length and color to customer specification
- Lead wires can be terminated with customer-specified terminals or connectors
- Liquid temperature sensing
22J High Temperature EGT Thermocouple Sensor
22J High Temperature EGT Thermocouple Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Automotive
Brand:
Therm-O-Disc
High temperature thermocouple Exhaust Gas Temperature (EGT) Sensor to help meet emissions and efficiency requirements. The sensor helps to monitor exhaust temperature sensor for after treatment purposes.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- High Temp
- -40°C to 1000°C (-40°F to 1832°F)
- Application Dependent
- N Type thermocouple offers better stability over the life of the product
- 3.2mm and other diameters available
- State of the art electronics
- Sensor with electronics high accuracy, fast response
- Industry standard CAN output
- High Temperature module rating offers better deployment options
- Allows automakers to meet vehicle emissions
- -40°C to 1000°C, 2-4 Channels

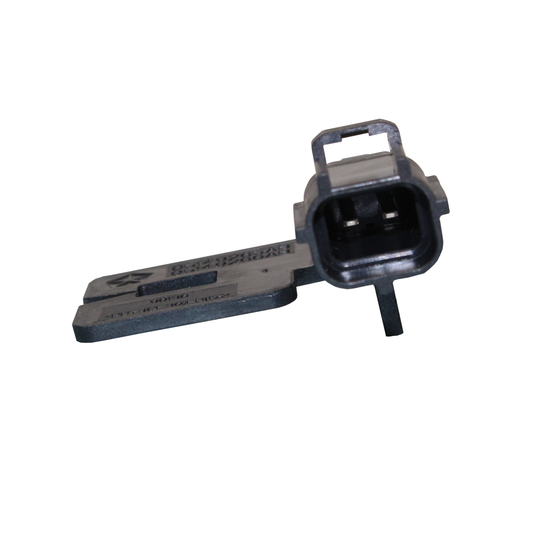

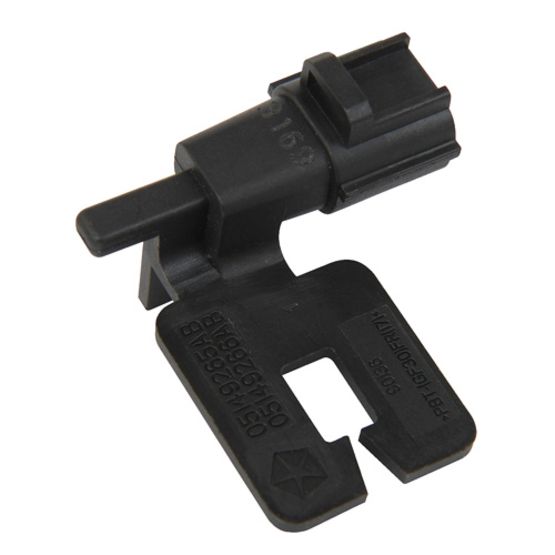

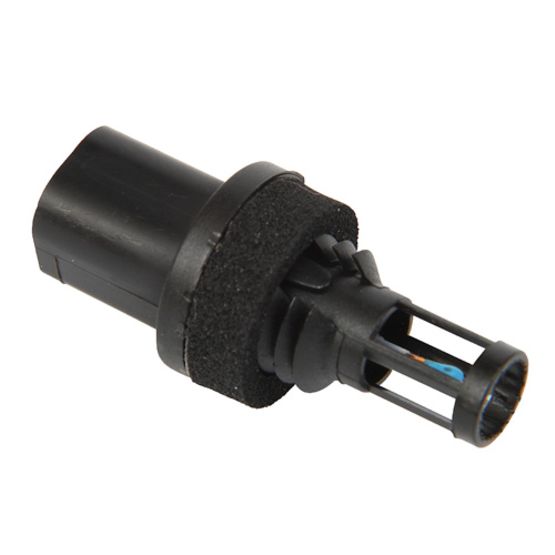

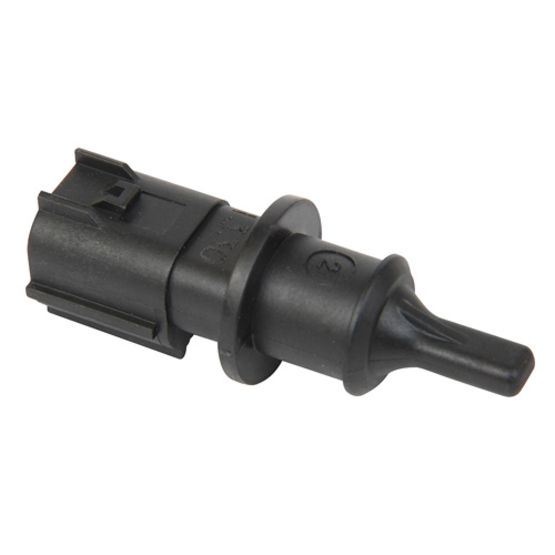

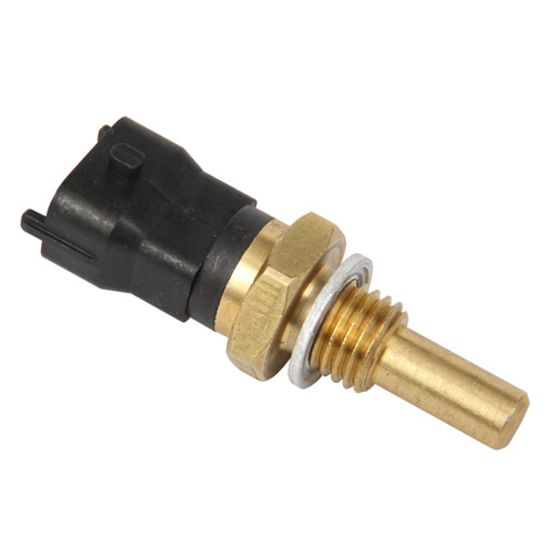

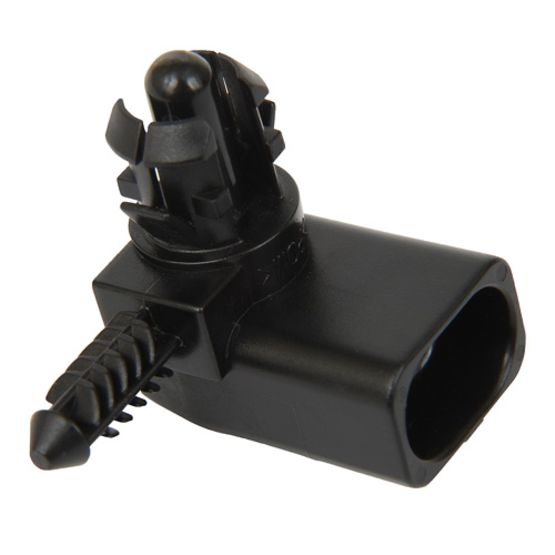

20J Thermistor Sensor Temperature Sensor
20J Thermistor Sensor Temperature Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Automotive
Brand:
Therm-O-Disc
20J Thermistor Sensors are our line of automotive sensors. The 20J is used in air temperature sensing applications such as HVAC, and Charge-Air temperature sensing. The thermistor element can be selected to meet any resistance-temperature curve and tolerance.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Automotive
- -40°C to 150°C (-40°F to 302°F)
- Application Dependent
- A wide variety of plastics and metals available for construction
- Application Centers and warehouses in North America, Europe and Asia
- Extremely economical designs
- Fast development cycle time
- Integral connectors or lead wires for connection
- Mounting to customer specification
- Single digit ppm field return performance
- TS/ISO certified
40J High Temperature Thermocouple
40J High Temperature Thermocouple
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
HVAC
Brand:
Therm-O-Disc
40J offers higher temperature ranges by offering N, K and other type Thermocouple probes.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- High Temp
- -40°C to 1000°C (-40°F to 1832°F)
- Application Dependent
- 40J Thermocouple offers higher temperature ranges by offering N, K and other type RTD technology.

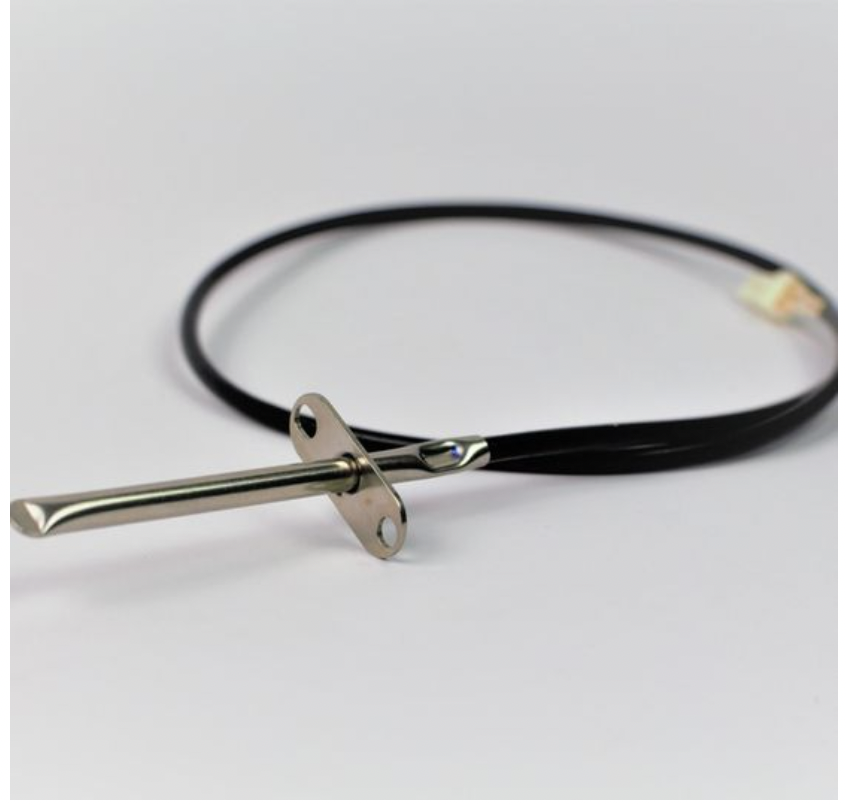

11J High Temperature RTD Sensor
11J High Temperature RTD Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Appliance
Brand:
Therm-O-Disc
Residential and Commercial cooking ovens typically require temperature monitoring during cooking and self-cleaning cycles. The Oven Temperature sensors are designed to monitor temperatures in these applications and provide a change in resistance versus temperature combining stability and accuracy offered in a wide temperature range.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- High Temp
- -70°C to 600°C (-94°F to 1112°F)
- Application Dependent
- PT1000, PT500, PT100 RTD elements
- Various top and wire lengths
- Stable sensor output
- Connector support per application
- Customized packaging
- Agency approval
- Connect configurations – passive sensor, ready-to-use, or fully assembled
76J Thermistor Sensor Temperature Sensor
76J Thermistor Sensor Temperature Sensor
Technology:
Sensing
Product Category:
Temperature Sensors
Application:
Appliance
Brand:
Therm-O-Disc
76J Thermistor Sensor offers fast thermal response in a flange-mounted, rugged, cost-effective design. The body is made from PBT plastic or other customer-specified plastic. The thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 76J is used in several applications including clothes dryers, ventilation systems, and many other applications where fast response in air is required.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Dry or Humid, Measures Airstream Temperature
- -40°C to 200°C (-40°F to 392°F)
- 11+
- Custom body lengths, diameters and application-specific mountings are available
- Optional moisture protection systems available
- PBT plastic bodies with other materials available
- Quick-connector terminal blades for fast wiring
- Stable performance with high degree of accuracy
- Surface-mounted ambient air temperature sensing
50P Pressure Sensor
50P Pressure Sensor
Technology:
Sensing
Product Category:
Pressure Sensors
Application:
Automotive, HVAC
Brand:
Therm-O-Disc
Sensience newly developed moisture resistant pressure sensor is resilient and able to withstand harsh media including refrigerants. The sensor has applications in many industries with flexibility to meet custom mounting and connection requirements.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Automotive
- -40°C to 150°C (-40°F to 302°F)
- Thermal Response (Sec.):
- Contains piezo resistive MEMS chip for a smaller, simpler design.
- Absolute and Differential types available
- Pressures 1 to 50 bar
30G Refrigerant Sensor
30G Refrigerant Sensor
Technology:
Sensing
Product Category:
Gas Sensors
Application:
HVAC, Refrigeration
Brand:
Therm-O-Disc
Reliable A2L Refrigerant sensor with Micro-Machined Membrane (MMM) Technology partnered with NevadaNano Technology that is UL 60335-2-40 Compliant, immune to poisoning, can withstand humid environments up to 100% condensing RH, detect <10 seconds to 25% LFL Level and have 15 years lifetime.
- Refrigerant
- Operating Environment
- *Operating Temperature
- Thermal Response (Sec.)
- Agency Compliance
- Storage Temperature
- *Operating Humidity Ranges
- *Operating Pressure Ranges
- Measurement Range
- Resolution
- Response Time
- Lifetime
- Communication Interface
- R-32, R-454 Blends
- Humid
- -40°C to 80°C (-40°F to 176°F)
<10 to 25% LFL Level- UL 60335-2-40 Annex LL
- -40 to 85°C (unpowered)
- 0-100% RH Condensing
- 65 to 110kPa
- 0-100% LFL
- 0.1% LFL
<10 seconds to 100% LFL step change- 15+ years with no calibration required
- RS-485 Modbus RTU
Digital serial UART (3.3V or SV)
Analog (0-3.3V)
*Not required by the UL standard; therefore not evaluated by UL.
- Enables hydrofluorocarbon (HFC) phasedown using A2L refrigerants less than 750 GWP.
- Uses Micro-Machined Membrane (MMM) technology.
- Sensors can be calibrated for R-32 and R-454 blends.
- Meets all AHRTI testing requirements including vibration testing, and is proven to be best-in-class.
- Immune to poisoning: Insensitive to poisoning from chemicals listed in UL-60335-2-40 Annex LL.
- No calibration / maintenance: No false alarms due to ambient conditions with the built-in environmental sensor for temperature, humidity, and pressure.
- Resistant to condensing environments
- Long life span: 15+ years
