G8 MICROTEMP Thermal Fuse

G8 MICROTEMP Thermal Fuse


Technology: Safety limits and Controls

Product Category: Thermal Fuses

Application: Appliance, HVAC

Brand: MICROTEMP


Designed for very high-current applications such as major appliances and high-wattage electric heat packages, the G8 series MICROTEMP® thermal fuse is rated for operating currents up to 25 amps at 250VAC (20 amps at 277VAC). More economical than electromechanical bimetal-type one shot devices, it can be utilized in applications where its small size is an advantage in terms of mounting (it is the same physical size as the G4, G5 and G6 series thermal fuses) and thermal response.

  • Function:
  • Tf Range:
  • Max Electrical Rating:
  • One-Shot Fuse
  • 72°C – 257°C 162°F – 495°F
  • 25A/250VAC
  • Cut, formed, or terminated leads available
  • MICROTEMP® thermal fuses from Therm-O-Disc® represent the global standard in thermal fuses
  • The G8 series, designed for higher voltage and current applications, is rated for continuous operating currents up to 25 amps at 250VAC
  • The global agency recognition of the G8-series enables use in a wide range of applications, including major appliances and HVAC applications
  • Various mounted and potted options available

Agency Ratings

(consult catalog for details)

  • Catalog
    MicroTemp Application Notes
    Read More
  • DO NOT DELETE OR UNPUBLISH - Test Resource
    Read More

Find a Distributor

Sensience's trusted distributors provide access throughout the world to our selection of the highest quality products and services.

GXAP12 PBT Glass Packaged Thermal Fuse

GXAP12 PBT Glass Packaged Thermal Fuse


Technology: Safety limits and Controls

Product Category: Packaged Thermal Fuses

Application: Appliance, HVAC, Refrigeration

Brand: MICROTEMP


The popular GXAP packages consist of a thermal fuse epoxy-potted into a plastic insulating mounting case. The assembly can be supplied with various case materials, shapes and terminations. They can be easily replaced in the field without disturbing the rest of the circuit.

  • Function:
  • Tf Range:
  • Max Electrical Rating:
  • One-Shot Fuse
  • 72°C – 134°C 162°F – 273°F
  • 25A/250VAC
  • UL agency recognition on packaged TCO design
    Different length, type and color of wires available

Agency Ratings

(consult catalog for details)

  • Catalog
    MicroTemp Application Notes
    Read More
  • DO NOT DELETE OR UNPUBLISH - Test Resource
    Read More

Find a Distributor

Sensience's trusted distributors provide access throughout the world to our selection of the highest quality products and services.

GXAM06 Ceramic Packaged Thermal Fuse

GXAM06 Ceramic Packaged Thermal Fuse


Technology: Safety limits and Controls

Product Category: Packaged Thermal Fuses

Application: Appliance

Brand: MICROTEMP

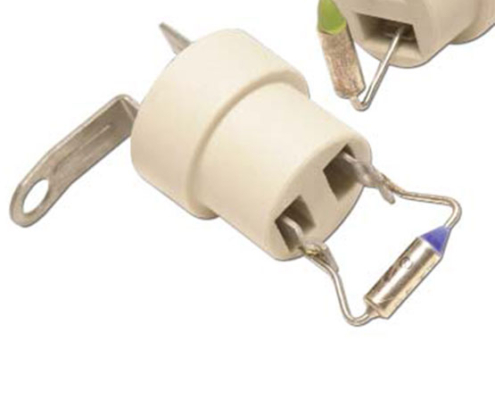

Designed primarily for HVAC heating applications, the GXAM04 and GXAM06 packages mount a standard thermal fuse on a high temperature ceramic base.

  • Function:
  • Tf Range:
  • Max Electrical Rating:
  • One-Shot Fuse
  • 72°C – 257°C 162°F – 495°F
  • 25A/250VAC
  • UL agency recognition on packaged TCO design

Agency Ratings

(consult catalog for details)

  • Catalog
    MicroTemp Application Notes
    Read More
  • DO NOT DELETE OR UNPUBLISH - Test Resource
    Read More

Find a Distributor

Sensience's trusted distributors provide access throughout the world to our selection of the highest quality products and services.

GXAP10 PPS Mineral Packaged Thermal Fuse

GXAP10 PPS Mineral Packaged Thermal Fuse


Technology: Safety limits and Controls

Product Category: Packaged Thermal Fuses

Application: Appliance, HVAC

Brand: MICROTEMP


The popular GXAP packages consist of a thermal fuse epoxy-potted into a plastic insulating mounting case. The assembly can be supplied with various case materials, shapes and terminations. They can be easily replaced in the field without disturbing the rest of the circuit.

  • Function:
  • Tf Range:
  • Max Electrical Rating:
  • One-Shot Fuse
  • 72°C – 192°C 162°F – 378°F
  • 25A/250VAC
  • UL agency recognition on packaged TCO design

Agency Ratings

(consult catalog for details)

  • Catalog
    MicroTemp Application Notes
    Read More
  • DO NOT DELETE OR UNPUBLISH - Test Resource
    Read More

Find a Distributor

Sensience's trusted distributors provide access throughout the world to our selection of the highest quality products and services.

GXAM11 PBT Packaged Thermal Fuse

GXAM11 PBT Packaged Thermal Fuse


Technology: Safety limits and Controls

Product Category: Packaged Thermal Fuses

Application: Appliance, HVAC

Brand: MICROTEMP


The GXAM11 package mounts a standard thermal fuse on a PBT base to facilitate customer’s installation.

  • Function:
  • Tf Range:
  • Max Electrical Rating:
  • One-Shot Fuse
  • 72°C – 134°C 162°F – 273°F
  • 25A/250VAC
  • UL agency recognition on packaged TCO design

Agency Ratings

(consult catalog for details)

  • Catalog
    MicroTemp Application Notes
    Read More
  • DO NOT DELETE OR UNPUBLISH - Test Resource
    Read More

Find a Distributor
