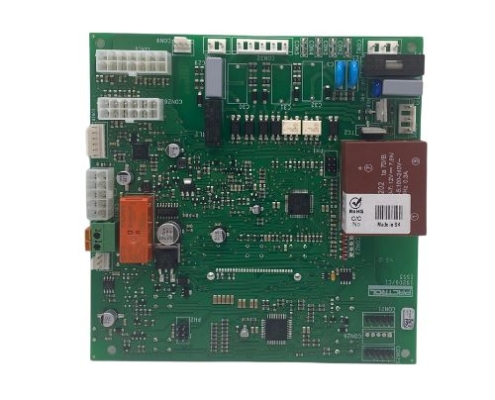

EcoGas
EcoGas
Technology: Electronic Controls
Product Category: Electronic Controls
Application: HVAC
Brand: Pactrol
The EcoGas controller is designed for the new generation of warm air and radiant tube heaters. Its temperature sensing and modulation control provide for high system efficiency. The smart communication interface allows integration into the building management system, and the development application allows rapid appliance development.
- Fuel Type
- Flame Detection
- Communications
- Gas
- Ionisation
- Modbus, OpenTherm
- High Efficiency Heater Control
- Modulation and Temperature Sensing
- Programmable Timings and options
- Outside/Room Temperature Compensation
- Smart Communication Interfaces

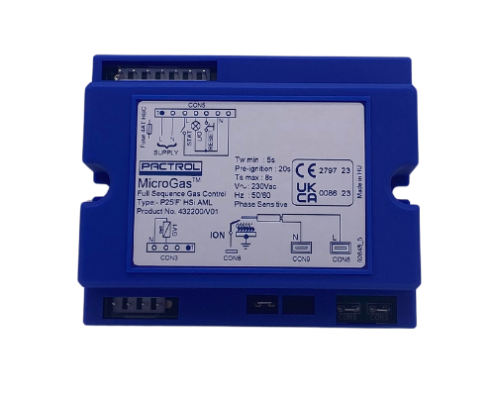

P25F Range: Hot Surface Ignition (HSI)
P25F Range: Hot Surface Ignition (HSI)
Technology: Safety limits and Controls
Product Category: Electronic Controls
Application: HVAC
Brand: Pactrol
Due to its flexible list of programmable options, the P25F HSi automatic burner control operates a range of burner systems, including Warm Air and radiant Tube Heaters and commercial ovens and grills. The Hot Surface Ignition output learns the optimal ignition temperature to maximize the lifetime of the ignitor. The self-checking flame detector can be used in permanent operation applications.
- Fuel Type
- Flame Detection
- Enclosure
- Gas
- Ionisation
- IP20
- Hot Surface Ignition
- Learning Algorithm to maximise Ignitor Lifetime
- Atmospheric or Forced Draught Applications with optional Air Proving
- Lockout Indicator
- Programmable Timings and options

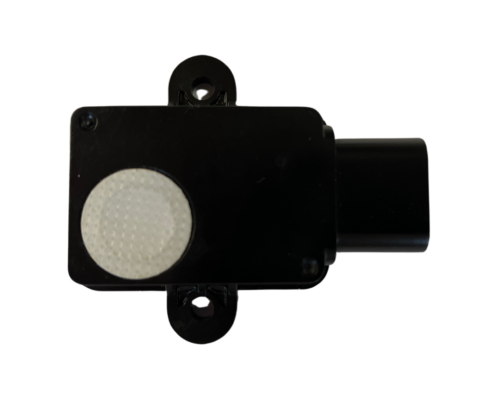

R290 A3 Refrigerant Gas Sensor
R290 A3 Refrigerant Gas Sensor
Technology: Sensing
Product Category: Gas Sensors
Application: HVAC, Refrigeration
Brand:
Reliable A3 Refrigerant sensor with Micro-Machined Membrane (MMM) Technology partnered with NevadaNano Technology that is immune to poisoning, can withstand humid environments up to 100% condensing RH, detect <10 seconds to 25% LFL Level and have 15 years lifetime.
- Refrigerant
- Operating Temperature Range
- Storage Temperature Range
- Thermal Response (Sec.)
- Operating Humidity Ranges
- Operating Pressure Ranges
- Measurement Range
- Lifetime
- Communication Interface
- R290
- -40°C to 75°C
- -40 to 94°C (unpowered)
<10 to 100% LFL Level- 0-100% RH Condensing
- 60 to 120kPa
- 4-100% LFL
- 15+ years with no calibration required
- MODBUS RTU
**Preliminary specifications. Contact our sales team for more information**
- Uses Micro-Machined Membrane (MMM) technology.
- Meets all AHRTI testing requirements including vibration testing, and is proven to be best-in-class.
- No calibration / maintenance: No false alarms due to ambient conditions with the built-in environmental sensor for temperature, humidity, and pressure.
- Resistant to condensing environments
- Long life span: 15+ years

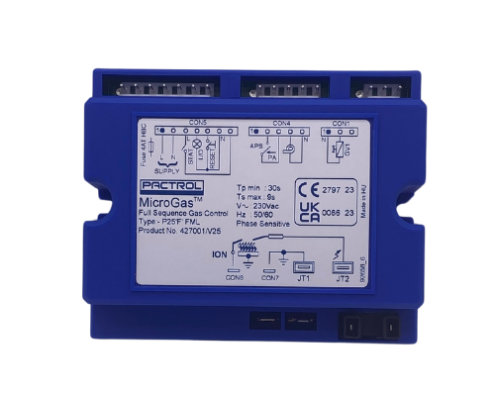

P25F Range: Spark Ignition
P25F Range: Spark Ignition
Technology: Safety limits and Controls
Product Category: Electronic Controls
Application: HVAC
Brand: Pactrol
The P25F Spark automatic burner control operates a range of burner systems, including Warm Air & Radiant Tube Heaters and commercial ovens and grills, due to its flexible list of programmable options. The flexible probe configuration can be used in single, dual or triple mode electrode configuration. The self-checking flame detector allows use in permanent operation applications.
- Fuel Type
- Flame Detection
- Enclosure
- Gas
- Ionisation
- IP20
- Spark Ignitor Output
- Single, Dual or Triple Probe Configurations
- Single or Two-Stage Gas Valve
- Atmospheric or Forced Draught Applications with optional Air Proving
- Lockout Indicator
- Programmable Timings and options
High Temperature Thermocouple
High Temperature Thermocouple
Technology: Sensing
Product Category: Temperature Sensors
Application: HVAC
Brand: Therm-O-Disc
40J offers higher temperature ranges by offering N, K and other type Thermocouple probes.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- High Temp
- -40°C to 1000°C (-40°F to 1832°F)
- Application Dependent
- 40J Thermocouple offers higher temperature ranges by offering N, K and other type RTD technology.
Pressure Sensor
Pressure Sensor
Technology: Sensing
Product Category: Pressure Sensors
Application: HVAC, Transportation
Brand: Therm-O-Disc
Sensience newly developed moisture resistant pressure sensor is resilient and able to withstand harsh media including refrigerants. The sensor has applications in many industries with flexibility to meet custom mounting and connection requirements.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Automotive
- -40°C to 150°C (-40°F to 302°F)
- Thermal Response (Sec.):
- Contains piezo resistive MEMS chip for a smaller, simpler design.
- Absolute and Differential types available
- Pressures 1 to 50 bar
A2L Gas Refrigerant Sensor
A2L Gas Refrigerant Sensor
Technology: Sensing
Product Category: Gas Sensors
Application: HVAC, Refrigeration
Brand: Therm-O-Disc
Reliable A2L Refrigerant sensor with Micro-Machined Membrane (MMM) Technology partnered with NevadaNano Technology that is UL 60335-2-40 Compliant, immune to poisoning, can withstand humid environments up to 100% condensing RH, detect <10 seconds to 25% LFL Level and have 15 years lifetime.
- Refrigerant
- Operating Environment
- *Operating Temperature
- Thermal Response (Sec.)
- Agency Compliance
- Storage Temperature
- *Operating Humidity Ranges
- *Operating Pressure Ranges
- Measurement Range
- Resolution
- Response Time
- Lifetime
- Communication Interface
- R-32, R-454 Blends
- Humid
- -40°C to 80°C (-40°F to 176°F)
<10 to 25% LFL Level- UL 60335-2-40 Annex LL
- -40 to 85°C (unpowered)
- 0-100% RH Condensing
- 65 to 110kPa
- 0-100% LFL
- 0.1% LFL
<10 seconds to 100% LFL step change- 15+ years with no calibration required
- RS-485 Modbus RTU
Digital serial UART (3.3V or SV)
Analog (0-3.3V)
*Not required by the UL standard; therefore not evaluated by UL.
- Enables hydrofluorocarbon (HFC) phasedown using A2L refrigerants less than 750 GWP.
- Uses Micro-Machined Membrane (MMM) technology.
- Sensors can be calibrated for R-32 and R-454 blends.
- Meets all AHRTI testing requirements including vibration testing, and is proven to be best-in-class.
- Immune to poisoning: Insensitive to poisoning from chemicals listed in UL-60335-2-40 Annex LL.
- No calibration / maintenance: No false alarms due to ambient conditions with the built-in environmental sensor for temperature, humidity, and pressure.
- Resistant to condensing environments
- Long life span: 15+ years
Manual Reset Bi-metal Control
Manual Reset Bi-metal Control
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Appliance, HVAC
Brand: Therm-O-Disc
The 36T manual reset control from Therm–O–Disc® offers proven reliability in a compact, versatile, cost–effective design. The snap-action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 15amps at 120VAC, and 10 amps at 250VAC.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Manual Reset
- 177°C / 350°F
- 15
- Non-trip free design
- Minimum manual reset -31°F (-35°C)
- Enclosed or exposed disc
- Plastic or ceramic construction
- Conical or gold contacts available
Biased Auto Reset Bi-metal Control
Biased Auto Reset Bi-metal Control
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Appliance, HVAC
Brand: Therm-O-Disc
The 69T line of 3/4” (19mm) bi-metal disc temperature controls from Therm–O–Disc® offers multiple temperature operations in a unique, cost effective design. The snap-action bi-metal disc provides high speed contact separation resulting in exceptional life characteristics at electrical loads up to 25 amps at 240 VAC. By utilizing heaters mounted internally, the open or close calibration of the bi-metal disc can be biased lower. The 69T is a cost-effective alternative in applications where multiple temperature control is required.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Biased Auto Reset
- 112°C / 233°F
- 25
- Available in automatic reset single pole, single throw and single pole, double throw switch configurations
- Enclosed or exposed disc
- Wide variety of terminals
High Temperature Bi-metal Control
High Temperature Bi-metal Control
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Appliance, HVAC
Brand: Therm-O-Disc
The 49T series of controls from Therm-O-Disc® offers proven 3/4” (19mm) bi-metal disc reliability in a high temperature package.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- High Temp Auto Reset or Fuse
- 288°C / 550°F
- 25
- #8 screw terminals
- Contacts open or close on temperature rise
- Enclosed or exposed disc available
