Thread-In Feedthroughs
Thread-In Feedthroughs
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Designed for floor installations not requiring hermeticity, Thunderline-Z Thread-In Feedthroughs offer easy and reliable installation. In both DC and RF styles, these parts not only offer an excellent alternative to messy epoxy installation but also serve as an easy repair pin solution.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- Laser Welding
- Kovar, Aluminum, Alumina Alloys, CRS, Stainless, Or Inconel
- Nickel, Silver,Gold,Copper, or Tin
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .009″ & .018″
- Suitable for DC applications

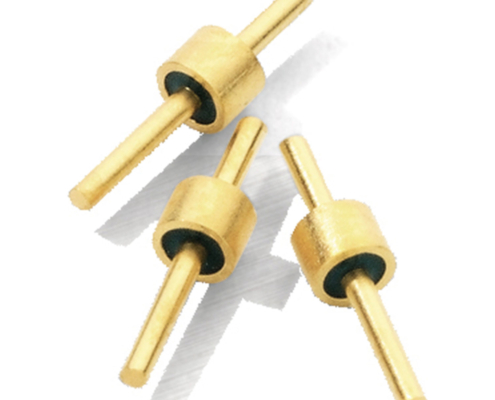

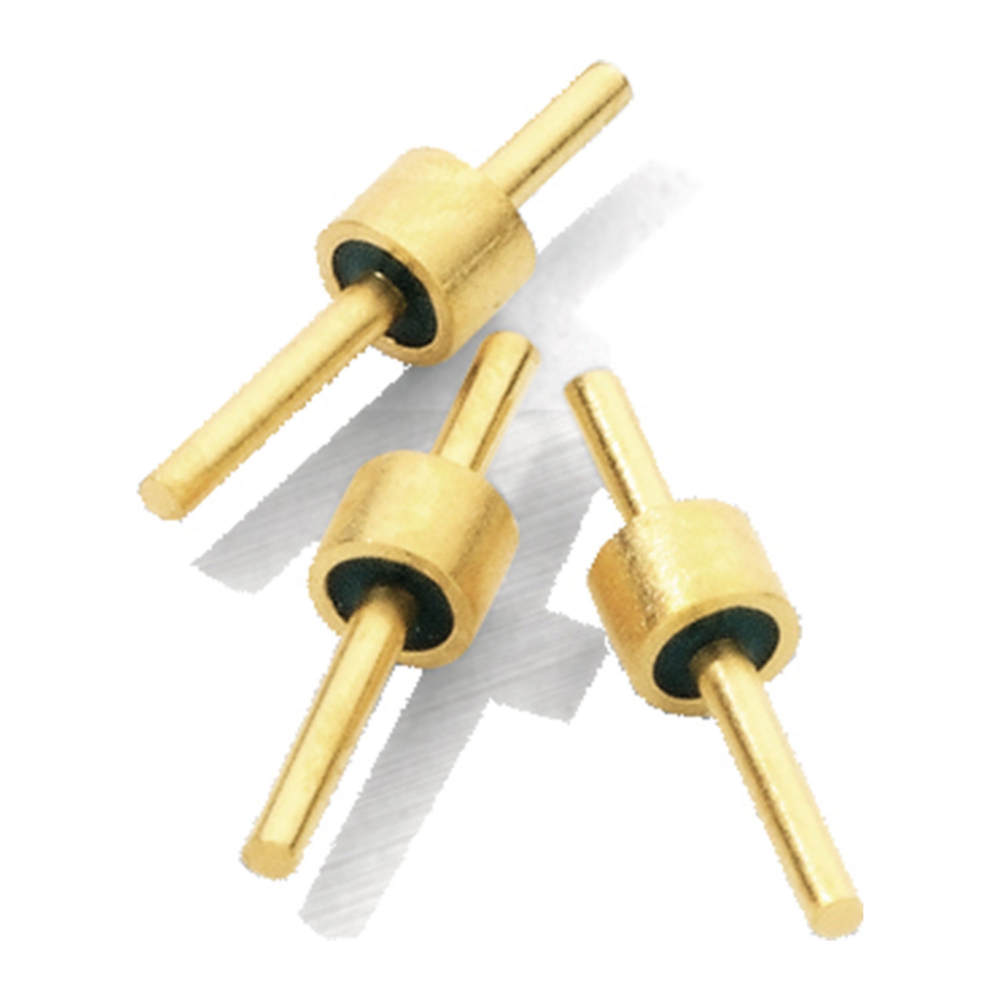

Capacitor-Filter Feedthroughs
Capacitor-Filter Feedthroughs
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Designed to eliminate noise and frequency interference in filtering applications found in modulators, switches, amplifiers, filters and multi-function assemblies, our capacitor feedthroughs provide for ultra-pure DC signals at high frequencies.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- .020 or .025 or .030
- Kovar or Steel
- Gold, Tin, or Silver
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .020″ or .025″ or .030″
- Suitable for DC applications
The Y1B series MICROTEMP® thermal fuse
The Y1B series MICROTEMP® thermal fuse
Technology:
Safety limits and Controls
Product Category:
Thermal Fuses
Application:
Aerospace & Defense
Brand:
MICROTEMP
The Y1B series MICROTEMP® thermal fuse is designed for mission critical devices like aircraft, aerospace equipment, etc. Every piece of Y1B TCO is produced under a strict quality control process. It is a non-agency approval product and usually requires thorough testing based on application’s usage conditions.
- Function:
- Tf Range:
- Max Electrical Rating
- One-Shot Fuse
- 110°C – 240°C 230°F – 464°F
- –
- {{content-0}}

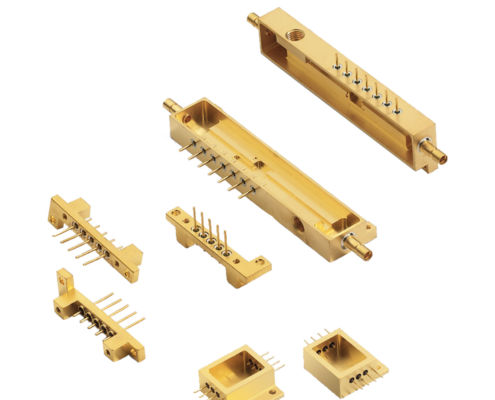

Hermetic Electronic Packages
Hermetic Electronic Packages
Technology:
Glass-to-Metal Hermetics
Product Category:
Sealed Electronic Packaging
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Our team knows the unique science of designing and manufacturing for hermeticity. We can produce highly customized hermetic packages for high frequency and fiber optic electronics with any combination of feedthroughs, press-on connectors, tubes, and multi-pin headers.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- Solder — Gold/Tin (80/20) & Tin Based (Sn96, Sb5)/Braze Laser Welding
- Kovar, Aluminum, Stainless Steel, CRS, Or Inconel
- Nickel, Silver,Gold,Copper, or Tin
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .009″ through .040″
- Base Materials: Kovar, Aluminum, Cold Rolled Steel (CRS), Inconel, Stainless Steel, Copper, Brass
Surface Mount Bell Pins
Surface Mount Bell Pins
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
The Thunderline-Z Bell Pin, a revolutionary design that does not require an external bent pin for contact, has been developed to work with lightweight aluminum or brass housings to create surface mount connections that perform well into K band frequency.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- .009 or .015 or .030
- Kovar
- Gold, Tin, or Silver
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .009″ or .015″ or .030″
- RF Performance: up to 65GHz
DC Feedthroughs
DC Feedthroughs
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Our DC feedthroughs are manufactured using precision components and controlled furnace technologies for perfect hermeticity. Our miniature DC feedthroughs are half the size of an average feedthrough, ideal for a variety of applications where a tight space within a row of feedthroughs is imperative.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- .018 to .040
- Kovar or Steel
- Gold, Tin, or Silver
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .018″ through .040″
- Suitable for DC applications

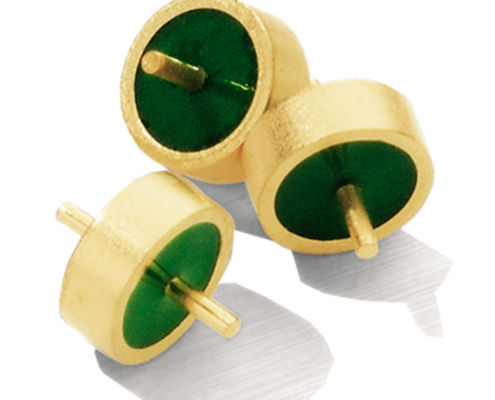

RF-50 OHM Feedthroughs
RF-50 OHM Feedthroughs
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Thunderline-Z produces the highest quality RF50 Ohm electrical feedthroughs on the market. By employing tight control of component tolerances and advanced manufacturing processes, our feedthroughs are able to achieve one of the highest frequency responses available – all while maintaining hermetic integrity.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- .009 to .020
- Kovar
- Gold, Tin, or Silver
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .009″ through .020″
- RF Performance: up to 65GHz

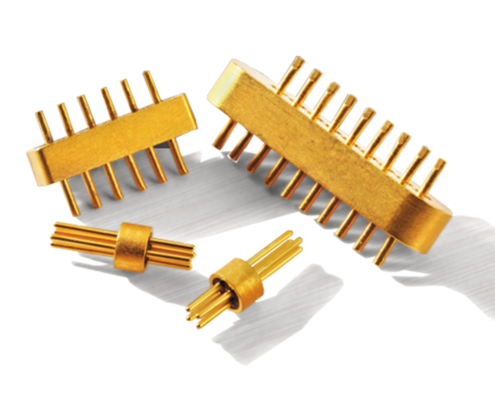

Multi-Pin Feedthrough Array
Multi-Pin Feedthrough Array
Technology:
Glass-to-Metal Hermetics
Product Category:
Electrical Feedthroughs
Application:
Aerospace & Defense
Brand:
Thunderline-Z
Thunderline-Z multi-pin feedthroughs are equipped with headers featuring tight feedthrough center-spacing, built-in filtering, ground pins, and superior matching of pin diameter and glass.
- Pin Diameter or Sealing Method:
- Material:
- Plating:
- 0.018
- Kovar or Steel
- Gold, Tin, or Silver
- Hermeticity:
<1×10-8 standard cc/sec helium - Pin Sizes: .018″
- Suitable for DC applications
