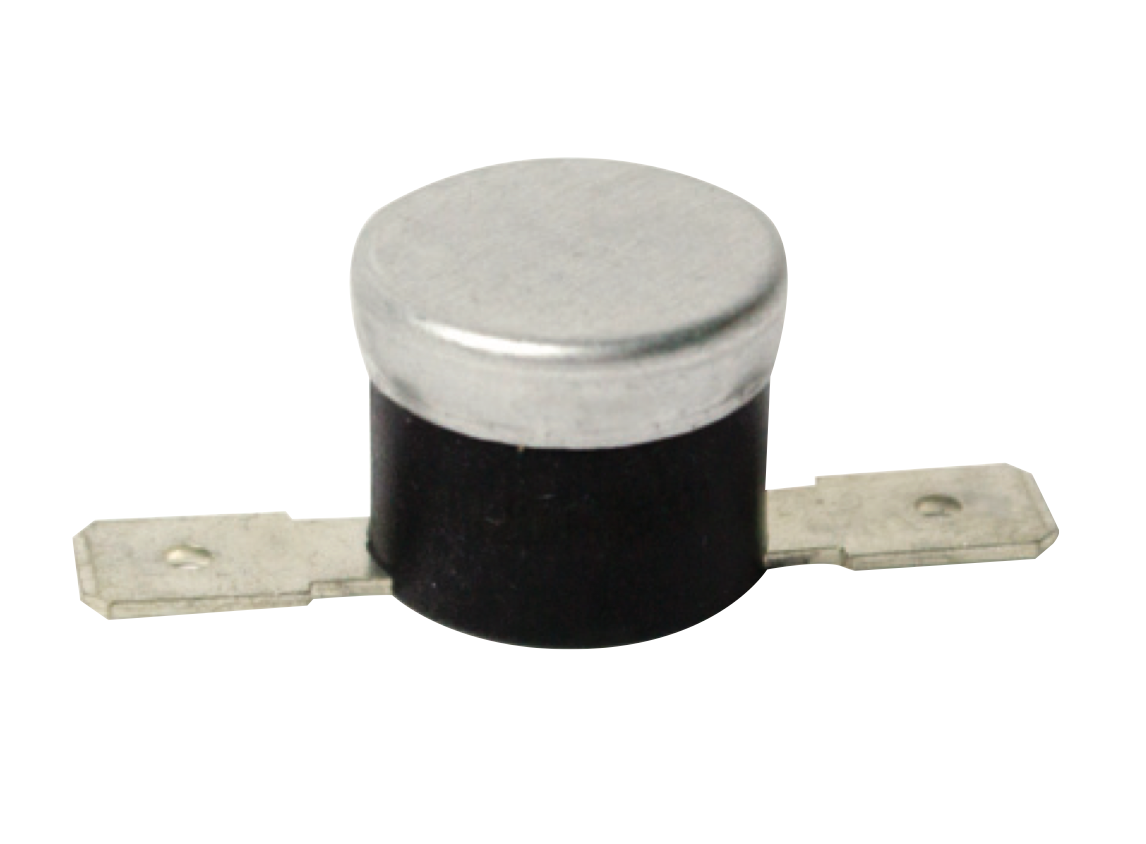

36J Thermistor Sensor Temperature Sensor
Technology: Sensing
Product Category: Temperature Sensors
Application: HVAC
Brand: Therm-O-Disc
36J Thermistor Sensor offers the electronic advantage of a thermistor in the time-honored and versatile packaging of Therm-O-Disc’s 36T series. The Thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 36J is used in several applications including clothes dryers, ventilation systems, coffee makers, dishwashers, HVAC systems, and many other applications.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Small Design, Measures Airstream or Surface Temperature
- -40°C to 200°C (-40°F to 392°F)
<2
- 11, 13, 15, 18 and 22mm pipe diameter clips available for Tube Mount body option
- 2.8 & 6.35 mm quick-connector terminal blades for fast wiring or molded-in connector options

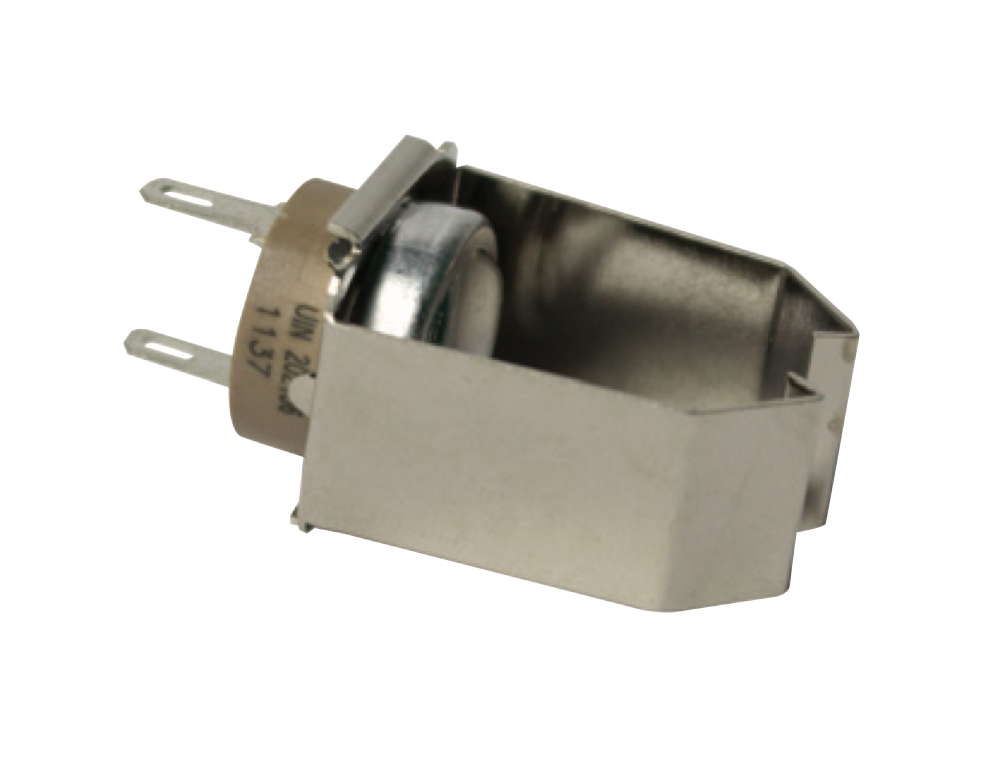

- No mount, Tube Mount, Airstream Mount, Surface Mount and Wide Flange Mount options are available as standard. Others available upon request.
- PPS plastic bodies with stainless steel or aluminum caps standard with other materials available
