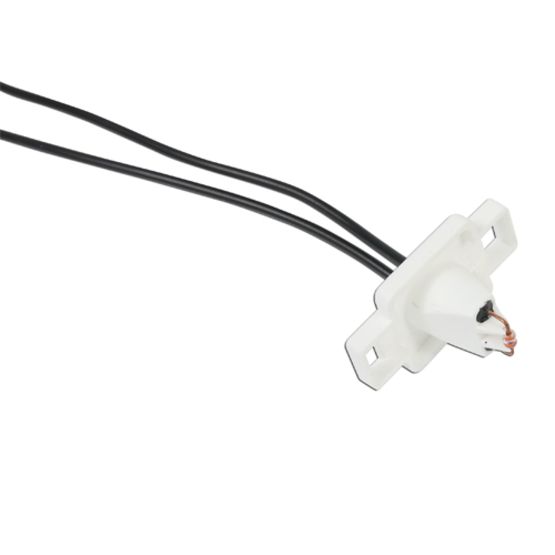

76J Thermistor Sensor Temperature Sensor
Technology: Sensing
Product Category: Temperature Sensors
Application: Appliance
Brand: Therm-O-Disc
76J Thermistor Sensor offers fast thermal response in a flange-mounted, rugged, cost-effective design. The body is made from PBT plastic or other customer-specified plastic. The thermistor element can be selected to meet any resistance-temperature curve and tolerance. The 76J is used in several applications including clothes dryers, ventilation systems, and many other applications where fast response in air is required.
- Operating Environment:
- Operating Temperature:
- Thermal Response (Sec.):
- Dry or Humid, Measures Airstream Temperature
- -40°C to 200°C (-40°F to 392°F)
- 11+
- Custom body lengths, diameters and application-specific mountings are available
- Optional moisture protection systems available
- PBT plastic bodies with other materials available
- Quick-connector terminal blades for fast wiring
- Stable performance with high degree of accuracy
- Surface-mounted ambient air temperature sensing
