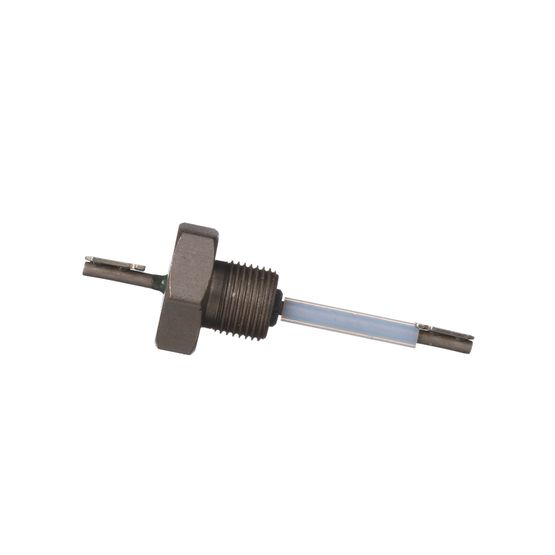

Single Pin Feedthroughs
Technology: Glass-to-Metal Hermetics
Product Category: Electrical Feedthroughs
Application: HVAC, Refrigeration
Brand: Fusite
For limited space conditions, Fusite offers a full range of standard single-pin feedthroughs with durable hermetic seals, with typical power and sensor applications up to 20 A continuous.
- Pin Metal Type:
- Bursting Pressure:
- Minimum Dielectric Voltage:
- Copper Core Or Stainless
- 2,250 psi
- 2500 volts @
<0.5 mA Leakage
- Hermeticity:
<1x10-7 standard cc/sec helium - Insulation resistance:
>10,000 megohm @ 500 VDC - UL Recognition on select models
- Dielectric voltage: 2500 volts @
<0.5 mA leakage
