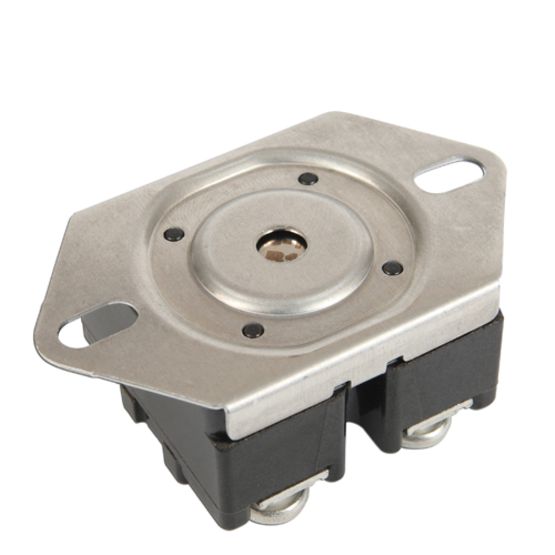

66T Manual Reset Bi-metal Limit
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: Water Heating
Brand: Therm-O-Disc
The 66T manual reset temperature limit from Therm–O–Disc® offers proven reliability in a compact, versatile, cost-effective design. The bi-metal disc’s snap-action provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 40 amps at 277 VAC.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Manual Reset
- 113°C / 235°F
- 40
- Double pole, single throw (”M2 Trip Free” construction)
- Can be mounted in combination with cycling 59T
- 66TM available with surface mount tabs (when not used in out 59T)
- 10–32 tin plated terminal screws for electrical connections
- Welded construction used on all internal current carrying components for greater electrical integrity
