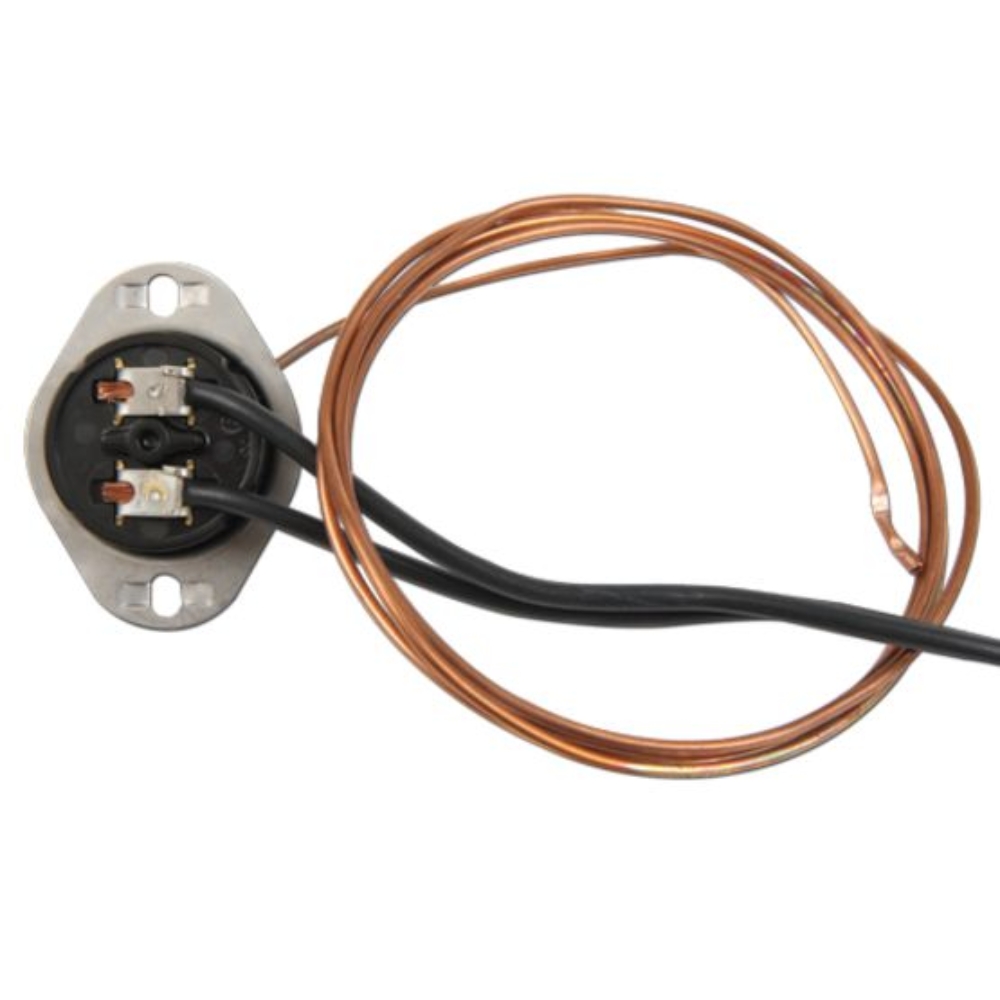

10H Linear Limit
Technology: Safety limits and Controls
Product Category: Bi-metal
Application: HVAC
Brand: Therm-O-Disc
The 10H series temperature control was developed to sense hot spots along the length of electric baseboard heaters. The snap-action design provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 25 amps at 277VAC. Typical applications include electric baseboard heaters and other applications where it is necessary to sense temperatures along a continuous length.
- Function:
- Max Calibration:
- Max Electrical Amperage:
- Capillary Auto Reset Or Manual Reset
- 177°C / 350°F
- 25
- “Push–on” screwless mounting

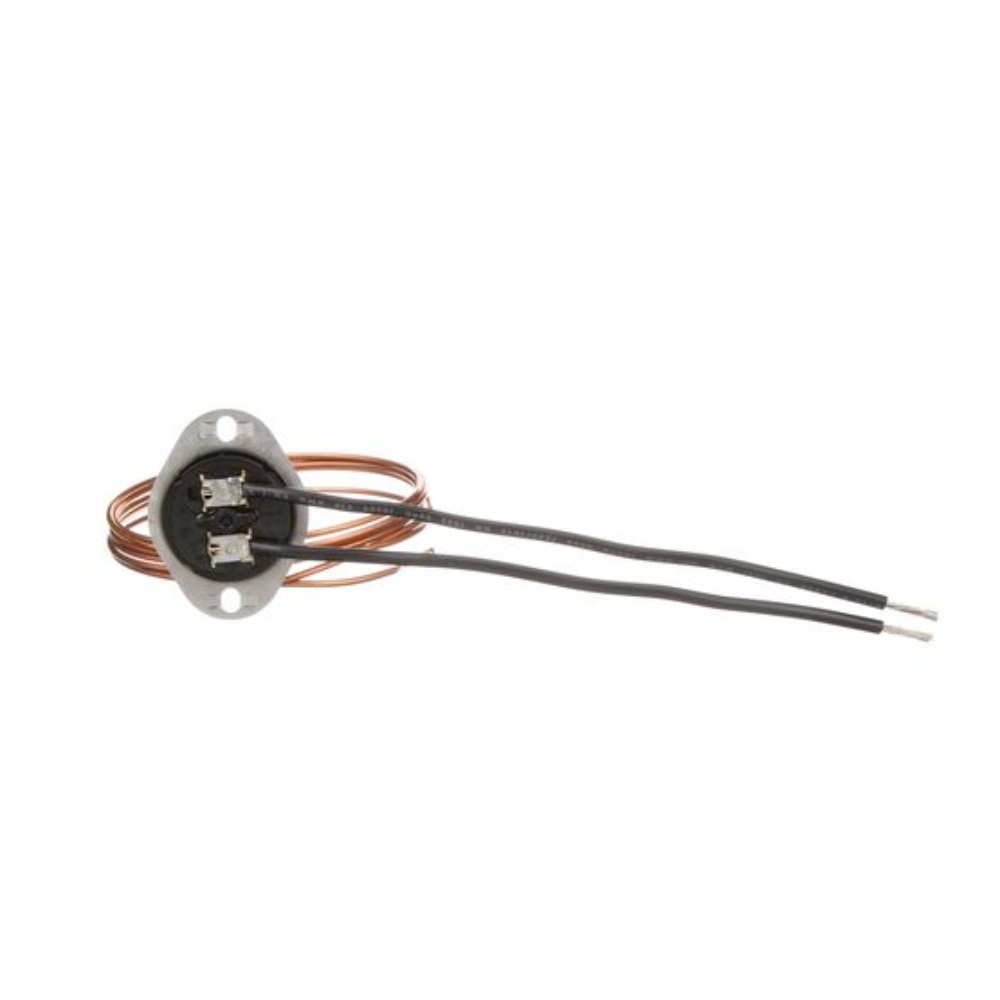

- Available with either 1/4 inch, 90 degree blade terminals or 6.5 inch lead wires
- Capillary tube lengths from 24 inches to 144 inches

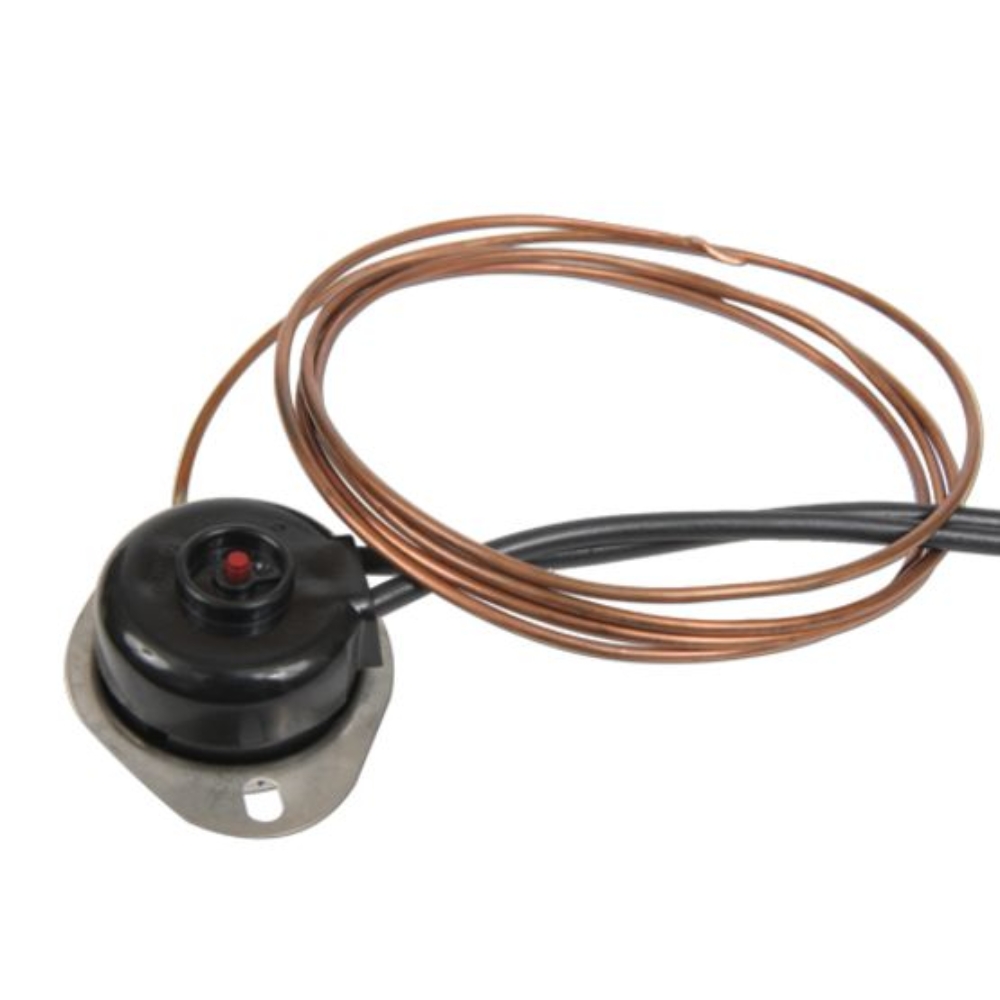

- Manual reset available (M1 trip free construction)
- Single pole, single throw
