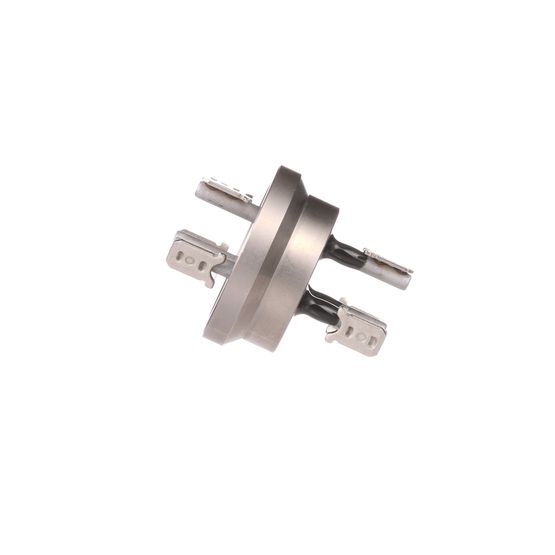

CO2 Compressor Feedthroughs

Technology: Glass-to-Metal Hermetics

Product Category: Electrical Feedthroughs

Application: HVAC, Refrigeration

Brand: Fusite

Fusite’s long history of glass-to-metal (GTM) experience allows us to understand the complexities of CO2 compressors, including the type of specialized materials required for this application. As GTM experts, we are able to design electrical feedthroughs for CO2 compressors that allow for higher operating pressure required by CO2 refrigerant.

  • Pin Metal Type:
  • Bursting Pressure:
  • Minimum Dielectric Voltage:
  • Copper Core Or Stainless
  • 8,000 or better psi
  • 2500 volts @ < 0.5 mA Leakage
  • Hermeticity: < 1x10-7 standard cc/sec helium
  • Insulation resistance: >10,000 megohm @ 500 VDC
  • UL Recognition on select models
  • Dielectric voltage: 2500 volts @ < 0.5 mA leakage

Agency Ratings

(consult catalog for details)
