10RS Laundry

Technology: Safety limits and Controls

Product Category: Bi-metal

Application: Appliance

Brand: Therm-O-Disc

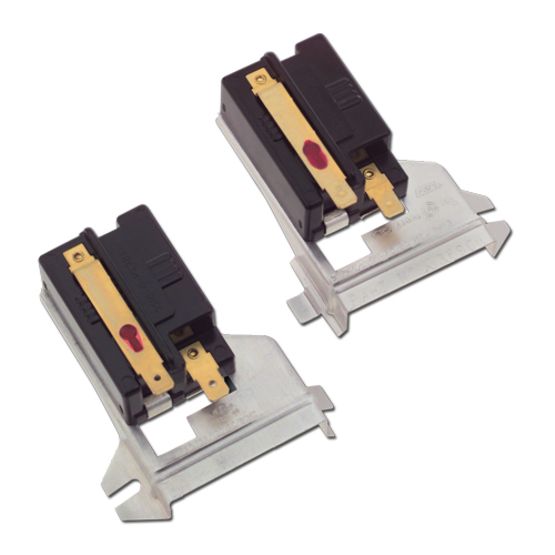

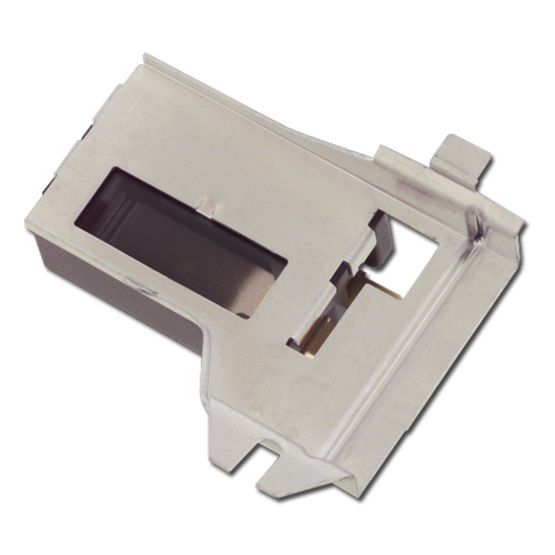

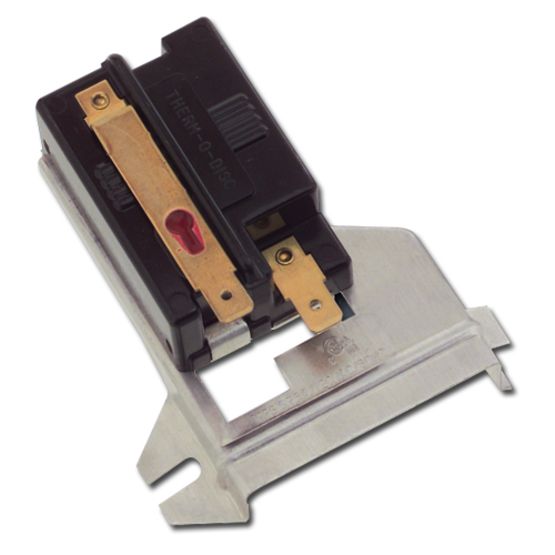

The 10RS auto reset bimetal radiant sensor from Therm–O–Disc® offers proven reliability in a specialized and cost-effective design for electrical loads up to 5.75 amps at 120 VAC. The CSA certified 10RS is most commonly used in hot surface ignition applications, such as gas clothes dryers.

  • Function:
  • Max Calibration:
  • Max Electrical Amperage:
  • Auto Reset
  • Ambient operating range 32°F to 325°F
  • 5.7
  • .032” x .250” (.81mmx 6.35mm) brass quick connect terminal
  • Glass window to maximize effect of radiant energy on bimetal element and limit exposure of sensor package to high igniter temperatures
  • Single pole, single throw
  • Tab and screw mounting plate

Agency Ratings

(consult catalog for details)

  • Catalog
    10RS Radiant Energy Special Purpose Control Product Specifications
